Main Features :

• Suitable for PP/HDPE/BOPP Woven sack bag
• Equipped with servo motor for precise cutting length(±1mm)
• Equipped with high quality alloy steel cutter
• Equipped with bag mouth anti-stick device
• Equipped with Web guide system
• Pneumatic lifting at un-winder to lift roll of 400 kg

Product Specification :

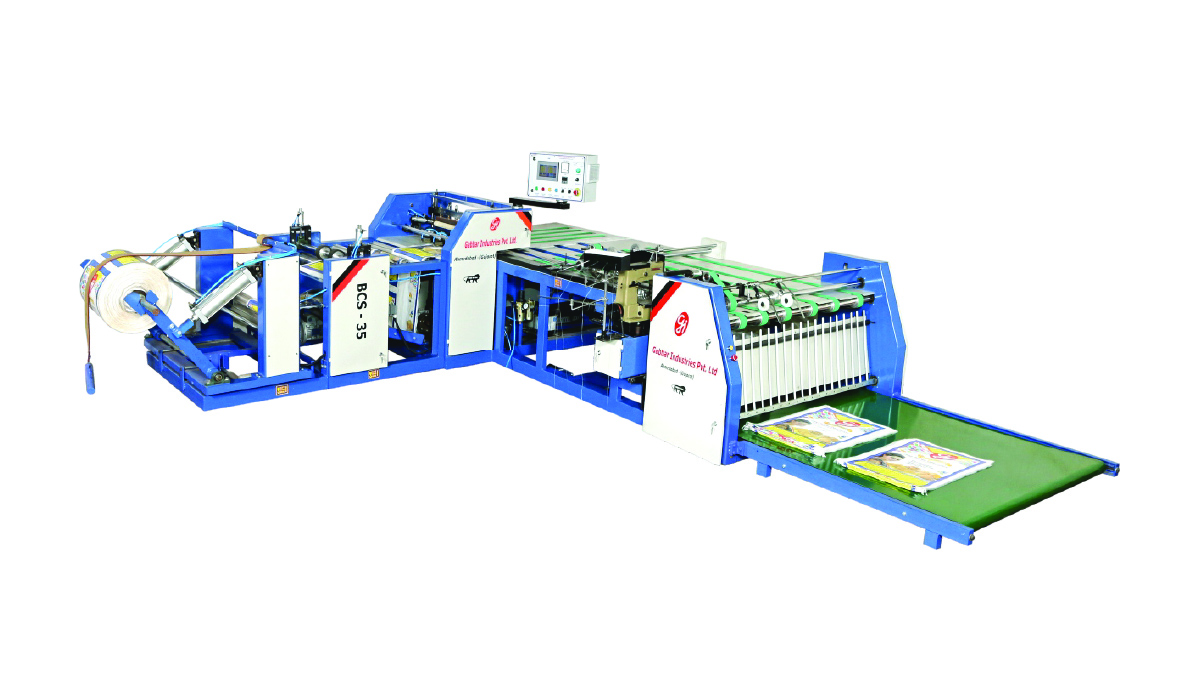

MODEL : BCS-35

DIAMETER OF UNWINDING CLOTH: 1300 mm maximum applicable

WIDTH OF UNWINDING CLOTH : 16-32 Inch adjustable

CUTTING LENGTH : 19-54 Inch adjustable

PRODUCTION OUTPUT : 32-40 bag/minute depend upon bag size

PRINT MARK SENSOR : Precise cutting of printed roll

FOLDING DEVICE : Single folder attachment

SEWING UNIT : 4500 RPM, 1 HP

LENGTH ACCURACY : ± 1mm range

COLD CUTTING (LAMINATED BAG) : High Speed Roadless Cylinder

HOT CUTTING(UN-LAMINATED BAG) : High quality alloy steel cutter with tubular heater

CONNECTED LOAD : 8 HP

Optional Features :

• Zig-Zag heat cutter
• Perforation attachment
• Double folder attachment
• Air Compressor 5 HP at customer scope
